Letterblock Diceware Passwords


PDF (drucken)

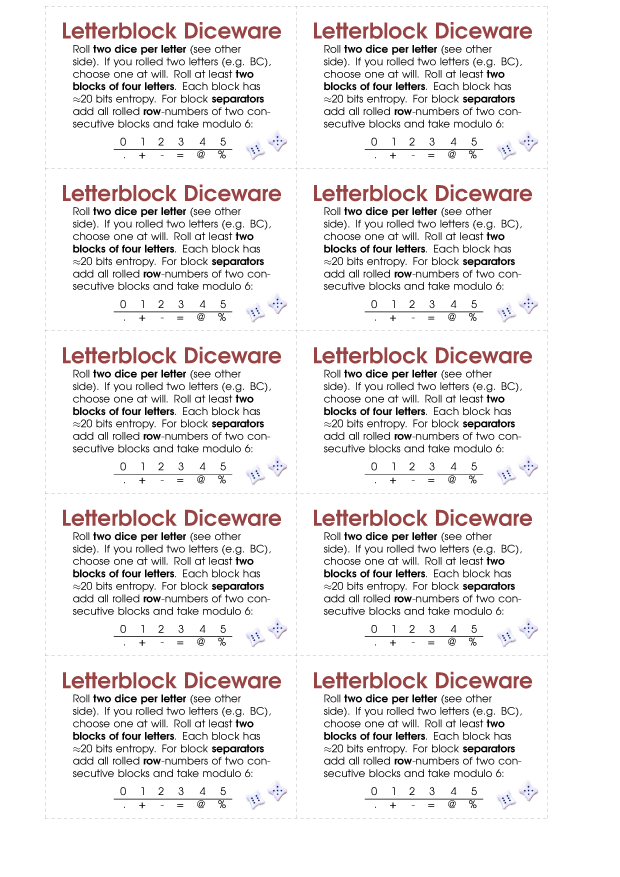

I wanted to give my son a diceware list and realized that giving him a printout of 5 pages in fine print would just not work out.

Diceware passwords use wordlists, but those are hard to type, because they have lots of letters. I’ve been using Letterblock passwords as shorter alternative for a while, but wanted an offline version. This is it.

Create a letterblock diceware password

Roll two dice per letter. If the result has multiple letters, choose the one which makes the password easiest to pronounce.

Roll up at least two blocks of four letters each. Each block has slightly more than 20 bits of entropy.

  1 2 3 4 5 6
1 1 A J a h px
2 26 BC LR bc i r
3 37 DH N d j s
4 48 E PX e k t
5 59 FK U f m u
6 0 QM VW gq o vw

After rolling the blocks, add the row-numbers (vertical) of the results of two consecutive blocks, take modulo 4, and choose from the following list:

0 1 2 3
. + - =

Example with 2 blocks, entropy 40: Niru-13J5

rolled: 33 52 62 65
letters: N i r u
rolled: 11 13 31 15
letters: 1 37 J 59

Separator: Add rows: 3 2 2 5 1 3 1 5 = 22, modulo 4 = 2 ⇒ -.

Background

Letterblock passwords only use 52 letters that are unambiguous in handwriting and safe to use in URLs, grouped in blocks of four letters to make them easier to remember, with separators that work as weak checksum to catch many typing errors before even sending the password to the server, with weak optimization for legibility by creating 8 passwords and choosing the one with bigrams that are closest to regular prose.

This letterblock diceware uses base52 letters that are unambiguous to write by hand. Compared to regular letterblocks, n and G were removed, because unclean n often looks like a u and unclean G looks like 6:

define base52 "0123456789ABCDEFHJKLMNPQRTUVWXabcdefghijkmopqrstuvwx"

As delimiters it only uses symbols that are available on every keyboard and are safe to use in most contexts:

define base52-delimiters ".+-="

To recover from common reading errors, use the following lookup table:

define base52-correct-reading-errors
  ' ; e . c: e = error, c = corrected
      G . 6
      I . 1
      O . 0
      S . s
      Y . X
      Z . 2
      l . 1
      n . u
      y . x
      z . 2

The entropy is 5.17 per letter, without counting the delimiters. So you get roughly 20 bits of entropy per block.

The letters ordered by the probability of the most common bigram in which they are second letter in prose:

define letters-by-probability
  . "rheidtscguamobfkpxw0v981526437qBEjTDRANLPUWHFMCVKXQJ"

The 52 symbols are collapsed into 36 die-roll-results using four principles:

  • Do not collapse vowels. They make for easier pronouncability.
  • Do not collapse 1 and 0. They make for simpler compound numbers.
  • Prefer collapsing uppercase letters. These are harder to type (you must hold down shift).
  • Prefer collapsing rare consonants to make it less likely to hit uncommon sounds.

Comparison

A diceware password delivers 12.92 bits of entropy per word. 6 words of 3 to 6 letters provide 77 bits of entropy, while 4 blocks of a letterblock password provide 80 bits of entropy.

Diceware using the eff memorable short word list with only 4 rolls per word delivers 10.34 bits of entropy per word, so you need 8 words to have more than 80 bits of entropy. Since these words are 3-5 characters, a short diceware password will require typing roughly twice as many characters compared to a letterbox password. It is easier to memorize, though (if you speak english).
